Understanding Light Bulbs and Bulb Fittings

The bulb fitting is the most important part of any light fitting, as it can not only be functional but can also provide a different finish to the overall aesthetic of the piece. In essence, the cap or base of the light bulb fitting joins to the lamp socket in order to provide an electrical connection and produce light.  There are many different bulb fittings and sizes to choose from, but we have cut out the jargon and made it simple!

Purchasing the wrong type of bulb is a common mistake, so we have created this handy guide to help you with all your bulbs and bulb fittings questions.

Multicolumn

Button label

Bayonet Fitting – B22

Named for the fitting design that utilised the same push and twist action used by soldiers to mount bayonets to their rifles, the bayonet fitting is the most common cap fitment in the UK. With two locating pins on either side of the cap, the pins will retract and expand into the slots inside the socket through the push and twist action.

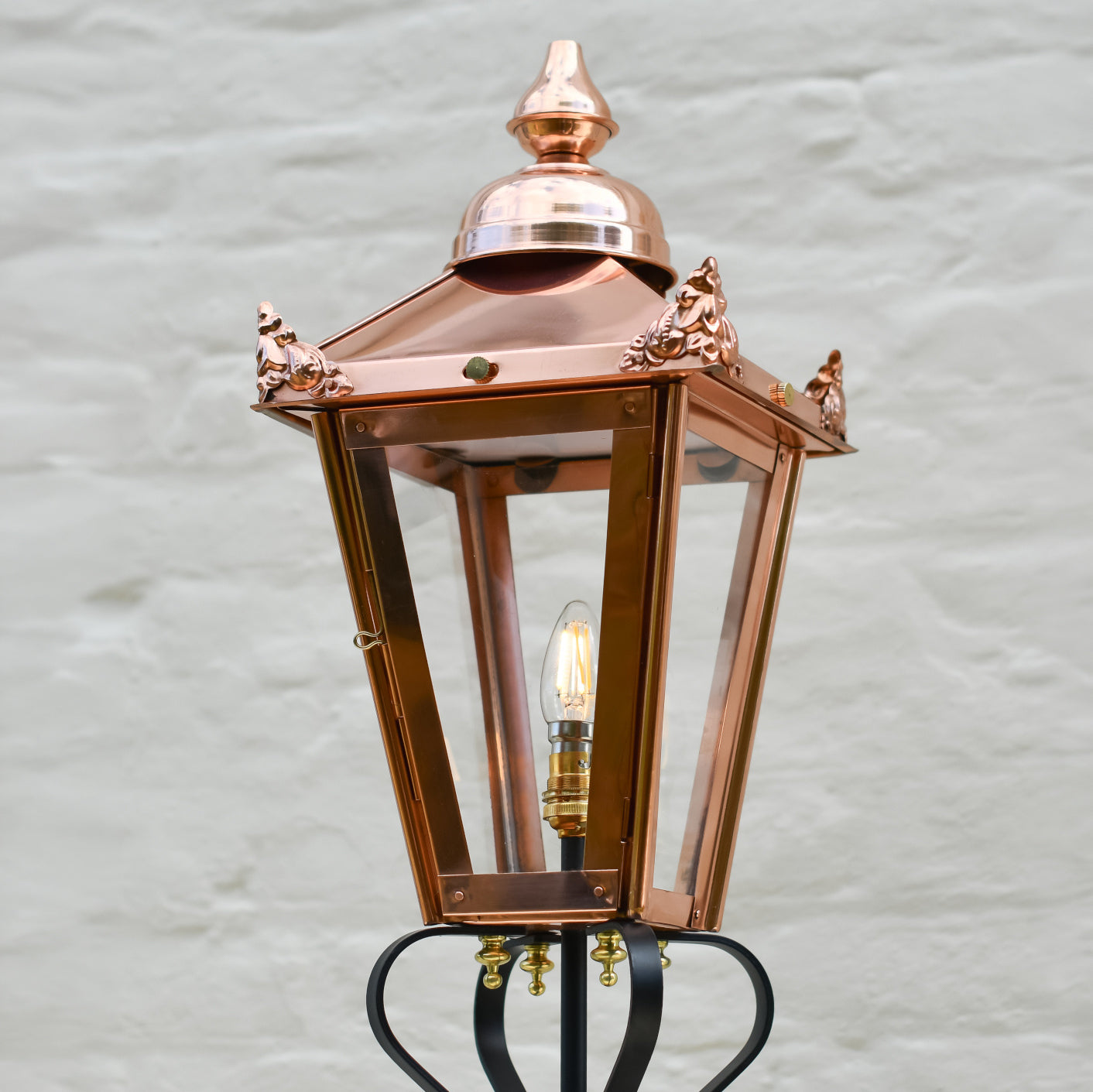

Featured in all ‘LF’ coded lanterns, this bulb holder has been created using high-quality brass. The fitting has a 2-amp fitting and is generally used with a 60-watt energy-efficient bulb. Please note, by request only, our ‘LF’ lanterns can be swapped to an Edison screw cap fitting.

Edison Screw Cap – E27

Named after the inventor and innovator Thomas Edison, the Edison screw cap features a threaded metal base which screws the bulb securely into place. The most common of the Edison screw type fittings is the E27, which is found in most domestic settings and is designed to fit in a standard light fixture. All other light fixtures will feature this fitting.

Multicolumn

Button label

Other Common Bulbs & Fittings

70 or 150watt SON (High Pressure Sodium) Fitting:

This type of fitting is more common in commercial settings, the high-pressure sodium fitting changes the luminaries' configuration slightly. With this fitting, the bulb is mounted directly into the light fixture with a SON igniter.
A 150watt SON fitting has an approximate 5000 lumen output and is a warm yellow/orange glow, closely resembling the original Victorian gas lamp light projection.

150-watt Metal Halide:

This type of lamp produces light through a mixture of vaporised mercury and metal halides. This type of bulb produces an intense, bright white light, which is commonly used in areas which require additional visibility, including sports arenas, car parks, retail stores, etc.

LED Panels:

LED panels features a sensor which often has an adjustable sensitivity and distance configuration switch. This essentially means higher light output levels but with better energy-saving performance. LED bulbs also have high levels of reliability, with longer life expectancy than traditional fittings. This type of light is recommended for larger properties or commercial applications as

LED Panels:

LED panels features a sensor which often has an adjustable sensitivity and distance configuration switch. This essentially means higher light output levels but with better energy-saving performance. LED bulbs also have high levels of reliability, with longer life expectancy than traditional fittings. This type of light is recommended for larger properties or commercial applications as

Bulb Type 220+ 400+ 700+ 900+ 1300+ 8000+ 16000+ 40000+
Standard 25W 40W 60W 75W 100W - - -
Halogen 18W 28W 42W 53W 70W 120W - -
CFL 6W 9W 12W 15W 20W 100W - -
MH/HP S - - - - - 250W 400W 1000W
LED 4W 6W 10W 13W 18W 60W 120W 400W

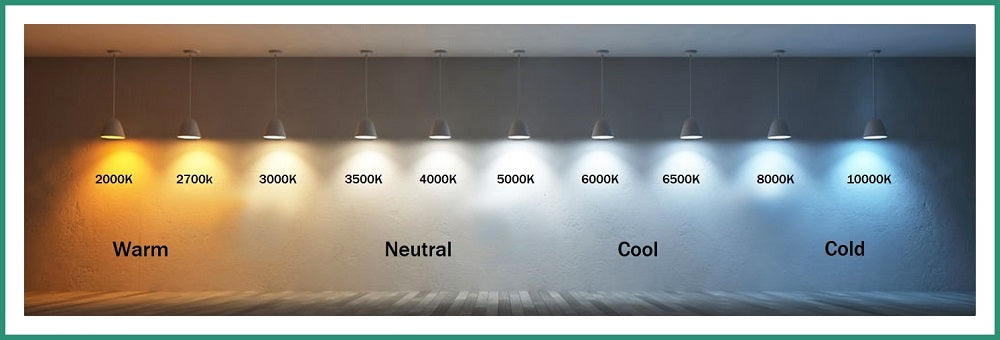

Kelvin Temperatures

This type of temperature light represents the colour that the bulb will produce. Generally, light colourisations fall between 2000K and 6500K for commercial and private residences.
